Model No.: WSC-TL1000D/TL1200D
Application: Flexible Bags Cartoning
Speed: 40~150PPM
Applicable Field: Food, Beverage, Pharmaceutical, Consumer Electronics and so on
Start From: $20,000.00
INQUIRY

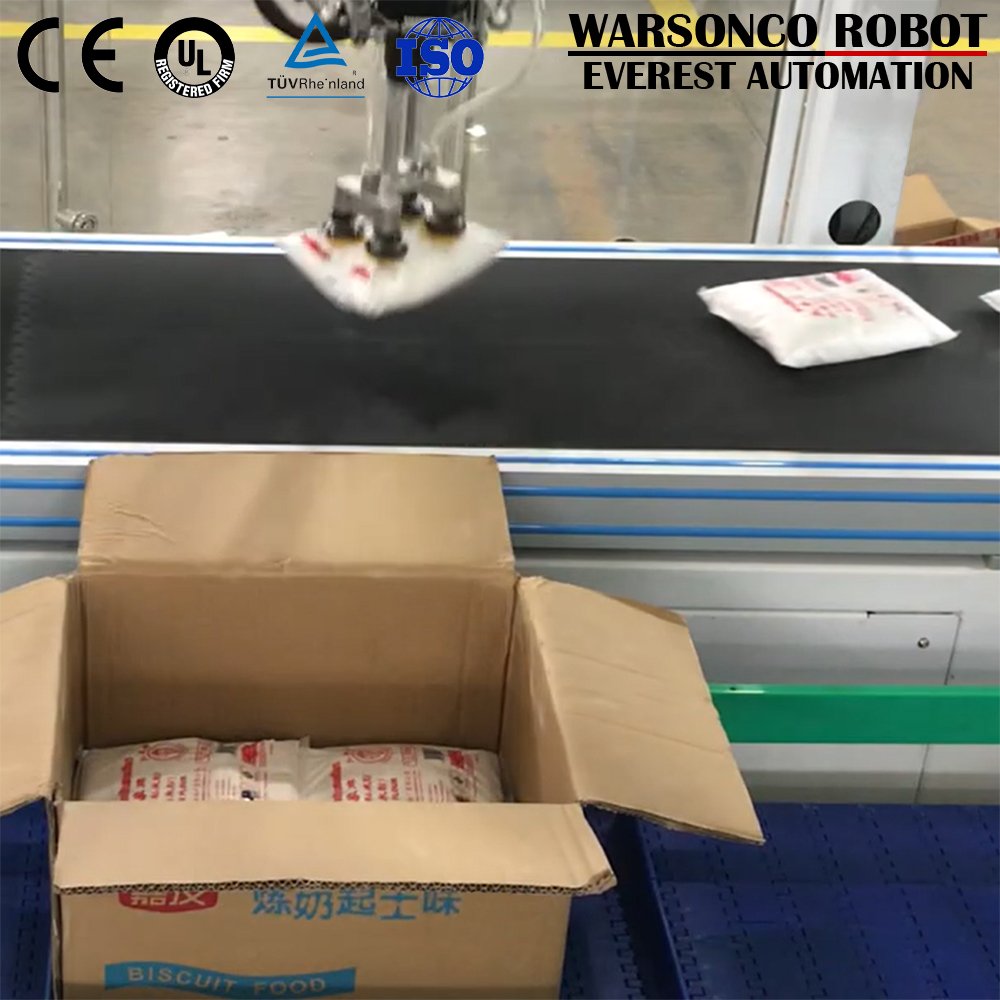

High-Speed Robotic Loader.

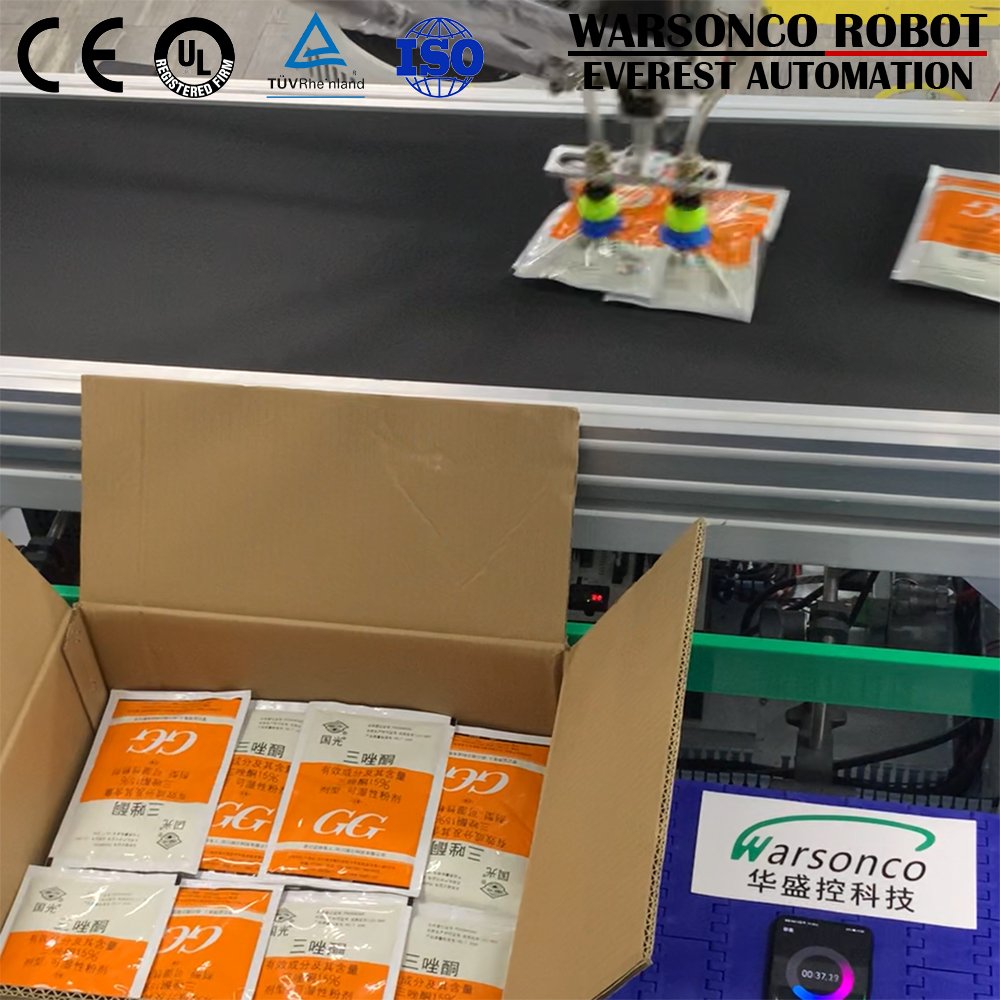

Vision-Based Robot Load Flexible Bags into Cases Efficiently.
High-Payload Deltas are Available for Large Bags/Pouches.
Single and Multi-Head Configurations Available.
Carbon Steel/SS304 Frame
One-Key Start, Multiple Packing Programs Preinstalled
Modular
Instant Changeover
Universal EOAT
Low Maintenance
Vision-Based Robotic Cell
|
Specifications |
|
|
Applicable Product Size |
10g-2000g（L10*W10*H10mm — L400*W180*H100mm） |
|
Speed |
40~150PPM |
|

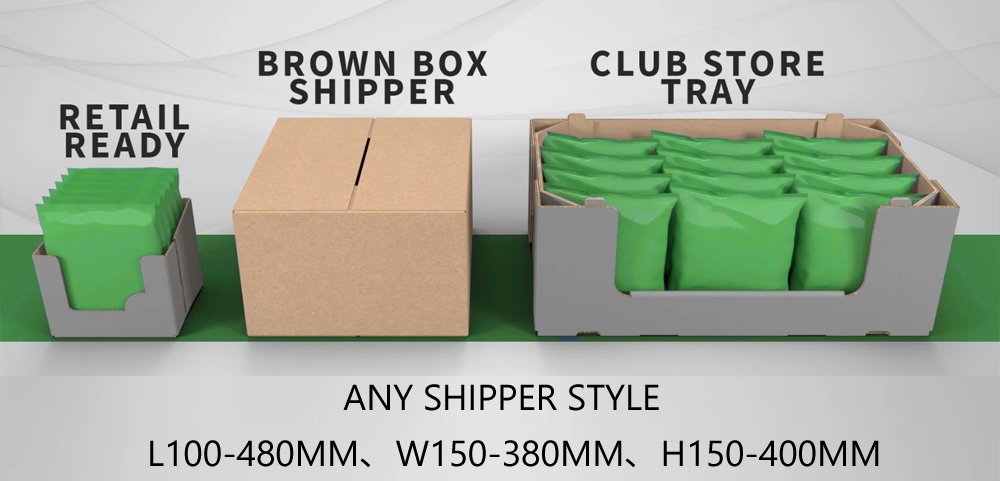

Case Pize |
L100*W100*H100mm — L480*W400*H300mm |
|
Applicable Products |
Thermoformed Pouches, Flow-Wrapped Packages, Flexible Bags |
|
Advantage |
Easy to us, Instant Changeover, Automatic Correction |
|
Power |
5KW |
|
Max Load |
5KG |
|
Overall Size |
L2350xW1730x2360mm |
|
Robot Model |
WSC-1000D/WSC-1200D |
|
Total Weight |
1000KG |
|
Components |
|
|
Name |
Brand |
|
Pneumatic Member |
SMC/AirTAC ； |
|
Driver |
Panasonic |
|
Controller |
KEBA |
|
Reducer |
Nidec-Shimpo/Harmonic Drive |
|
CCD |
BOJKE |
|
Vision System |
HikVision/MindVision |
